Upgrade our Brackets for Drift Kart with a more powerful Surron LBX Motor,

Name: Electric Surron Motor Mount Brackets for Drift Kart
SKU: 18725
Availability: InStock

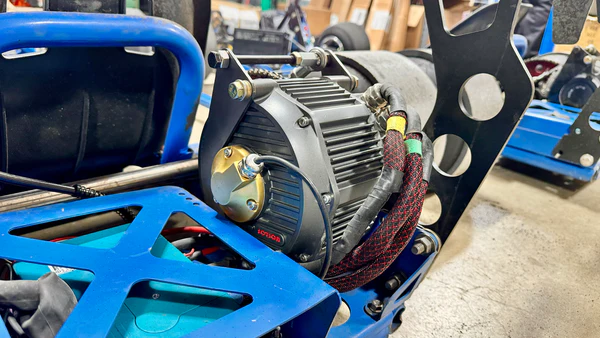

Brackets for Drift Kart A popular motor commonly used on E-Bikes. Running this new motor will drastically improve thermal cooling resulting in longer drift sessions before having to let the motor cool down.

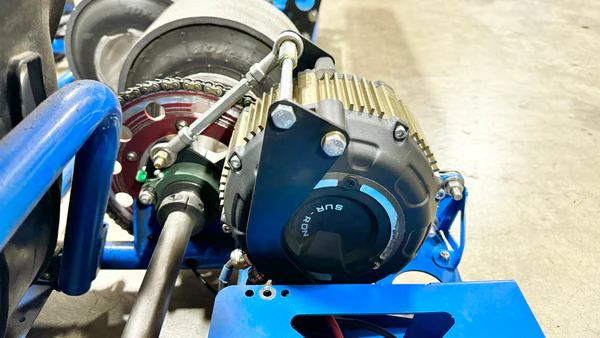

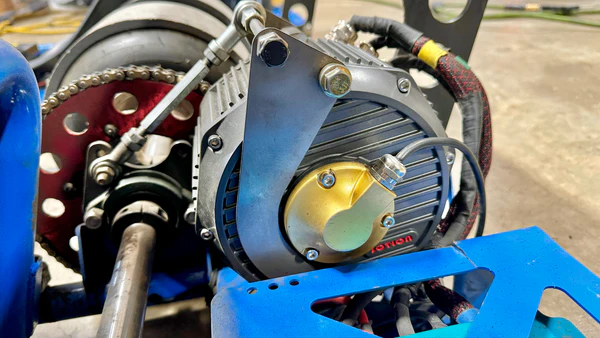

We designed this motor bracket with a Turnbuckle/tie rod to allow for easy adjustment of chain tension.

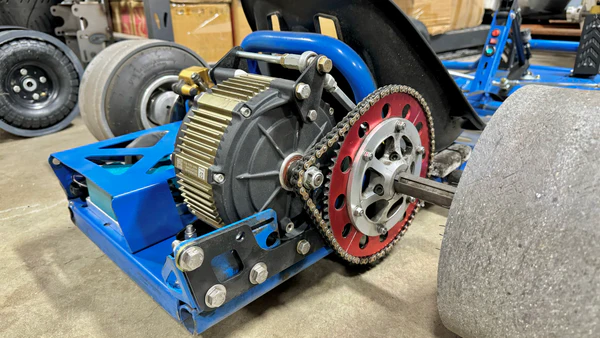

We also made a custom offset motor sprocket to allow chain to have more clearance. Our sprocket moves the teeth/chain more out wards from the motor. A regular Surron Sprocket has the teeth in a center position, this works well for E-Bike as their chain is mounted between the the bikes frame, but on our Drift Kart the motor & chain is mounted on the side of kart frame.

Additionally, our custom motor sprockets use a #35 chain/teeth pitch, which, in turn, allows for a wider range of axle sprocket options. As a result, riders can more easily fine-tune gear ratios to match different drift track layouts and driving styles. Moreover, this flexibility helps optimize acceleration, top speed, and overall control, ensuring consistent performance across tight technical courses or wider, high-speed tracks.

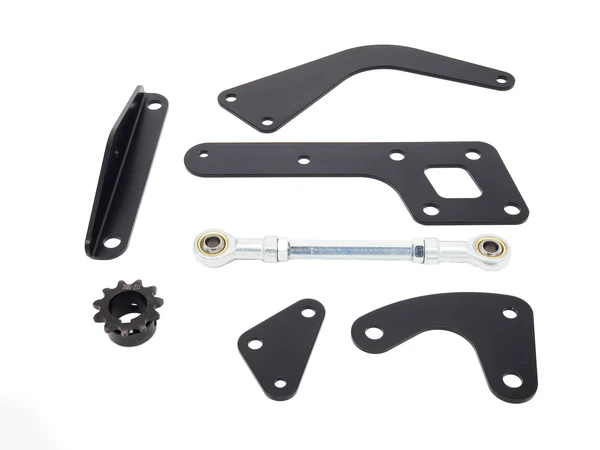

Brackets for Drift Kart Includes:

11T #35 offset motor sprocket, providing precise alignment and efficient power transfer
Motor mounting brackets, which ensure a secure and stable installation
Adjustable turnbuckle, allowing quick and accurate chain tension adjustments
Complete hardware kit, so installation is straightforward and hassle-free

Compatible Motors:

Surron LBX, offering reliable integration and proven performance
Sotion FW01, ensuring smooth power delivery and compatibility
QSMotor QS165 (pending / currently testing), expanding future upgrade options
KO Moto (pending / currently testing), supporting upcoming motor setups

In addition, extended phase wire options are available to simplify installation and improve cable routing. These include the Surron LBX Extend (Blue) with 350mm phase wires, the QSMotor QS165 Extend (Blue) with 350mm phase wires, and the Sotion FW01 Extend (Yellow & Green) with 400mm phase wires. Altogether, this setup delivers adaptability, ease of use, and performance-focused customization for serious drift kart builds.
